Detailed Product Description
| Image Sensor: |
1/4-type EXview HAD CCD |
Effective Pixels: |
Approx. 440000 Pixels |
| Digital Zoom: |
12x |
Lens: |
10x Optical Zoom |
| Dimensions (W X H X D): |
35.9 X 40.8 X 59.2 Mm |
Weight: |
3.3 Oz (95 G) |

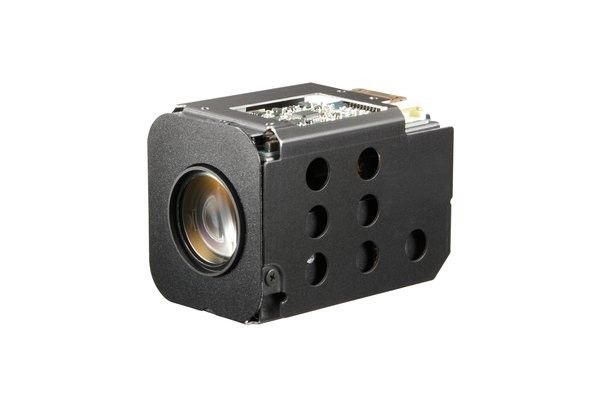

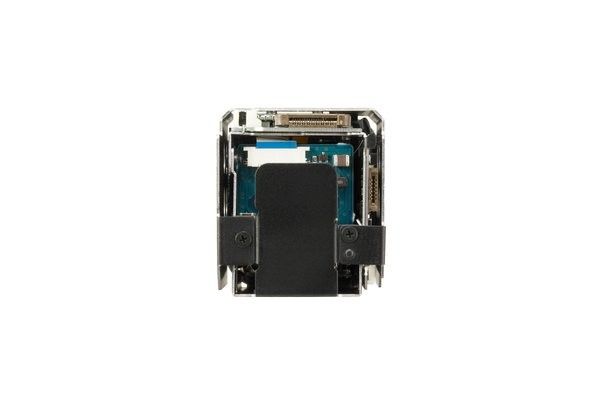

CCTV Video SONY Camera Module Color Block FCB-EX11DP 1/4 - type EXview HAD CCD
Feature:
* 1/4-type EXview HAD CCD
* Advanced Digital Signal Processor (DSP)
* High Horizontal Resolution of 530 TV Lines
* 120x Zoom Ratio (10x Optical, 12x Digital)
* SMART (Sony Modular Automatic Lens Reset Technology) Lens Control
* Angle of View (H) - 46.0° (wide end) to 4.6° (tele end)
* Advanced Spherical Privacy Zone Masking with Mosaic Effect
* Video Motion Detection
* Minimum Illumination - 1.0 lx (F1.8, 50 IRE typical)
* 16 bytes memory
* E-Flip Function
* Slow AE Response - Ideal for monitoring areas in which lighting conditions abruptly change
* Spot AE
* Multi-Line On-screen Display
* Picture Freeze Function
* Electronic Shutter/Slow Shutter - 1 to 1/10,000s, 22 steps
* High-Speed Serial Interface (maximum 38.4 Kb/s with TTL Signal-Level Control - VISCA protocol
* Internal/External Sync
* Customizable Settings
* Dimensions: 35.9 x 40.8 x 59.2 (mm)
* Mass: 95g
Applications:
Whether your requirement is for a fixed, dome, or Pan/Tilt/Zoom camera.
Underground inspection systems of oil gas pipes
Low vision systems
Police vehicles
Competitive Advantage:
The new ultra-compact and lightweight FCB-EX11DP camera is specifically designed for easy integration into mini-dome housings for superb observation.
Auto-focus performance and small size make it the ideal contender in space restricted environments .
Description:
The new ultra-compact and lightweight FCB-EX11DP camera is specifically designed for easy integration into mini-dome housings for superb observation. Its outstanding picture quality, excellent auto-focus performance and small size make it the ideal contender in space restricted environments such as underground inspection systems of oil gas pipes, low vision systems, police vehicles and more. The FCB-EX11DP incorporates a 1/4-type EXview HAD CCD™ sensor and is equipped with a 10x optical zoom lens that can provide a 120x zoom ratio when combined with the digital zoom. In addition, the FCB-EX11DP color block camera inherits many of the excellent features found in Sony's new FCB D version cameras such as slow AE Response, Advanced Spherical Privacy Zone Masking and Multi-line on-screen display. With its excellent picture quality, compact size and feature-rich design, the FCB-EX11DP is ideal for a wide range of applications.
Technical specification:
| Camera Specifications |
Detail: |
| Image Device |
1/4-type EXview HAD CCD |
| Effective Pixels |
Approx. 440000 pixels |
| Digital Zoom |
12x (120x with optical zoom) |
| Horizontal Viewing Angle |
46° (wide) to 4.6° (tele) |
| Minimum Object Distance |
200 mm (wide)
1.0 m (tele) |
| Sync System |
Internal/External (V-lock) |
| Electronic Shutter |
1 to 1/10000 s
22 steps |
| White Balance |
Auto
ATW
Indoor
Outdoor
One-push
Manual |
| Gain |
Auto / Manual (-3 to 28 dB
2 dB steps) |
| EV Compensation |
-10.5 to 10.5 dB (1.5 dB steps) |
| Backlight Compensation |
On/Off |
| Privacy Zone Masking |
On / Off (24 positions) |
| Character Generator |
OSD: 11 Lines (20 characters per line)
Camera Mode display: ON/OFF |
| Focus System |
Auto (Sensitivity: normal and low)
One-push AF
Manual
Infinity
Interval AF
Zoom Trigger AF |
| Picture Effects |
E-Flip
Nega Art
Black & White
Mirror Image |
| Exposure Control |
Auto
Manual
Priority Mode
Bright
EV Compensation
Backlight Compensation
Slow AE |
| Video Output Specifications |
Detail: |
| Lens Value |
10x |
| S/N Ratio |
More than 50 dB |
| Minimum Illumination |
1.0 lux |
| Video Output |
VBS: 1.0 Vp-p (sync negative)
Y/C |
| Signal System |
PAL |
| Horizontal Resolution |
On/Off (On: 530 TV lines) |
| Horizontal Resolution Value |
530 TV Lines |
| Interfaces Specifications |
Detail: |
| Camera Control Interface |
VISCA (TTL signal level)
Baud rate: 9.6 Kb/s
19.2 Kb/s
38.4 Kb/s
1 or 2 Stop bit selectable |
| General Specifications |
Detail: |
| Dimensions (W x H x D) |
1 7/16 x 1 5/8 x 2 3/8 inches
(35.9 x 40.8 x 59.2 mm) |
| Weight |
3.3 oz (95 g) |
| Operating Temperature |
32 to 122 °F (0 to 50 C°) |
| Storage Temperature |
-4 to 140 °F (-20 to 60 C°) |
| Power Consumption |
1.9 W (motors inactive)
2.8 W (motors active) |
| Power Requirements |
DC 6 to 12 V |
